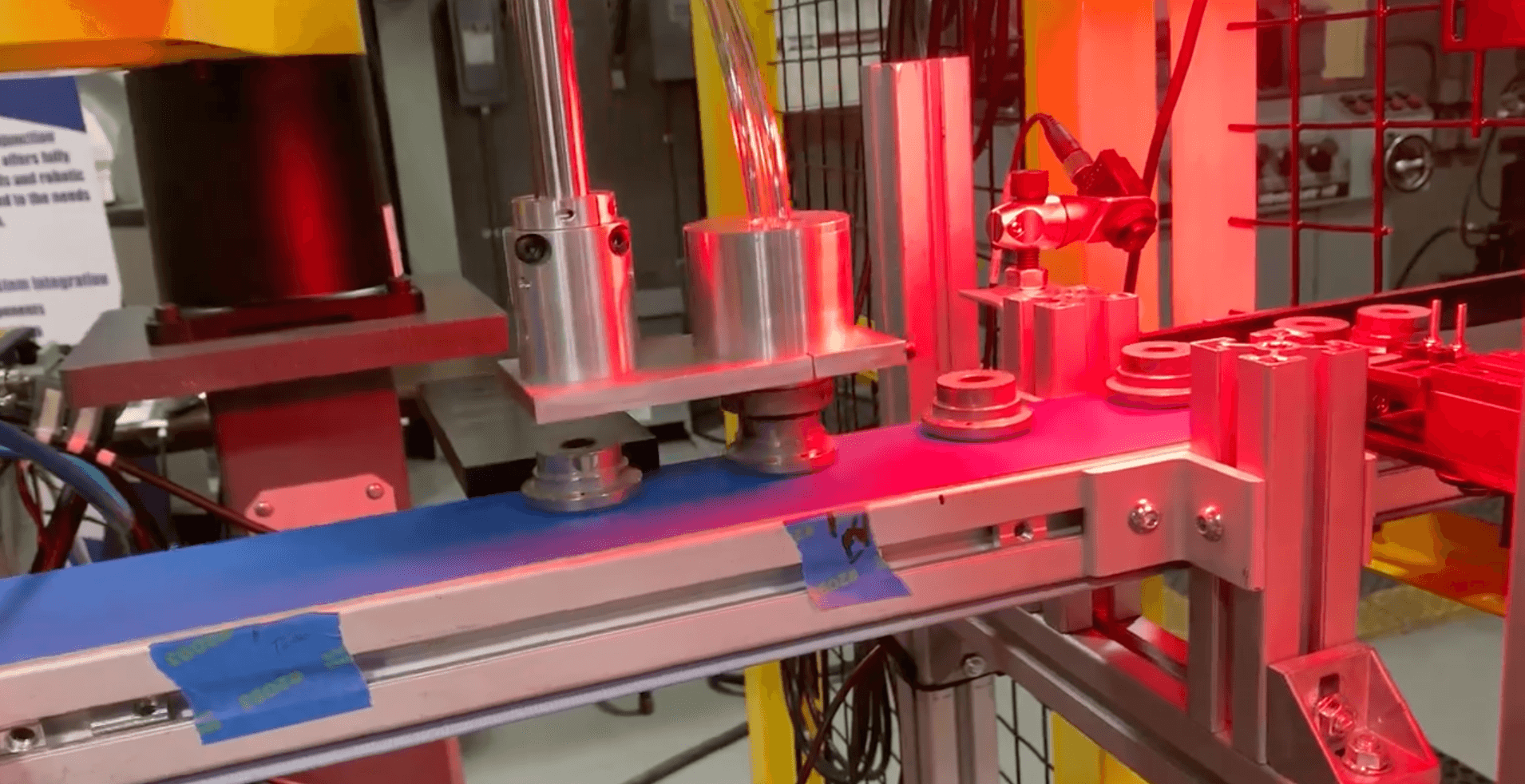

iRVision Line Tracking Inspection Cell
Advanced robotic inspection system with integrated vision and line tracking capabilities for automated quality control.
👁️
Vision System
Fanuc iRVision 2D Inspection with Line Tracking
🤖
Robot
Fanuc Scare SR-6ia with Custom EOAT
🎮
Control System
Allen Bradley Micro 800 Series PLC & HMI
⚡
Performance
Up to 30 parts per minute inspection rate
System Components
Fanuc Scare SR-6ia
Fanuc iRVision 2D Inspection
Fanuc Line Tracking
Bore Inspection Air Gauge
Allen Bradley Micro 800 Series PLC
Allen Bradley Micro 800 Series HMI
SMC Pneumatics
Custom EOAT Design & Integration
Custom Control Panel & HMI Panel
100% Inspection
Complete inspection of all manufactured parts
Inline Process
Eliminates manual gauging requirements
High Speed
Processes up to 30 parts per minute
Full Integration
Seamlessly integrated with production line
